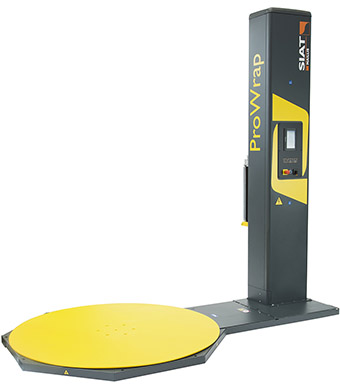

ProWrap




   DTM SW 2

Semi automatic stretch wrapping machine with an electronic control

Features
  • New design and long-lasting structure working also in heavy duty environment (-20°C)
  • 4.0 concept technology
  • 7" touch screen control panel
  • 12 programs/ 5 operating modes
  • Variable parameters over the pallet within the cycle (6 upshift zones, 5 downshift zones)
  • High productivity (up to 30 plts/h with PW750)
  • Pre-stretch up to 400% (with double motor carriage)
  • Safety-driven technology
  • New safety feature on the carriage (footprint savings) and new detection safety scanner (instead of fences)
Options
  • Pressing unit
  • Remote control
  • Pitframe
  • Lift frame
  • Scale
  • Loading ramp
  • Inox version
  • Cutting system
  • Cut & welding system
  • Cut & attaching system (without blowing)
  • Safety laser scan
  • Integrated weighing system



  Film heads


SIAT Folienkopf
SIAT Folienkopf

  Electromechanical Break Fixed Prestretch 300% Variable Prestretch up to 400%

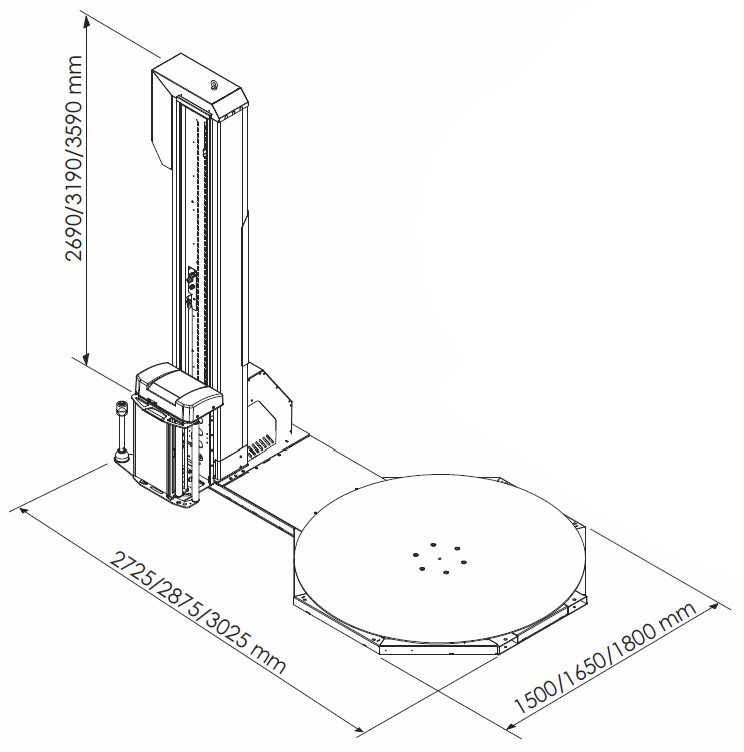

  Technical Data
  Type: ProWrap
  Turntable diameter: 1650 mm / 1800 mm / 2200 mm (your choice)
  Max. loading weight: 2000 kgs
  Max. pallet dimensions: 1200 x 800 mm / 1200 x 1000 mm / 1200 x 1200 mm (choice)
  Max. pallet height: 2200 mm / 2600 mm / 3000 mm (your choice)
  Max. film height: 500 mm
  Max. film roll diameter: 300 mm
  Power supply: 380 V  50 Hz  3 Ph.
